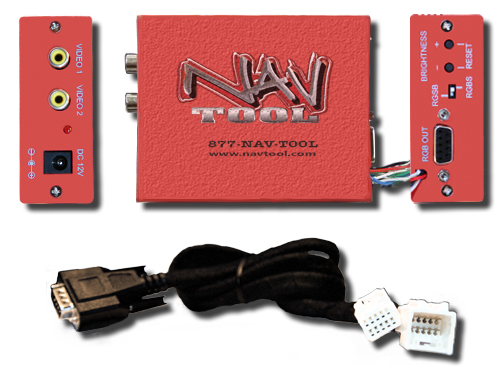

Package Content:
NavTool Video Interface 1pc. Part#NAVRGB
NavTool Plug & Play Installation Harness 1pc. Part#TL10
NavTool Vehicle Specific Installation Manual 1pc.
Product Overview:

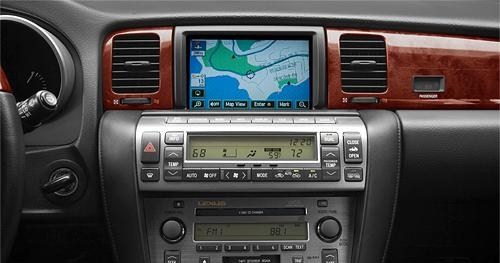

NAVRGB is a navigation video interface device that adds video capabilities to vehicles with factory installed navigation systems, or full color information screens.
NAVRGB does not replace or add a factory navigation system, it only creates additional video inputs for the navigation system or color screen.
NAVRGB video interface is 100% PLUG & PLAY - no wire cutting required. NavTool PLUG & PLAY installation harnesses are made using OEM connectors.
NAVRGB video interfaces come with two composite video inputs: video 1 is dedicated for any video source, video 2 is dedicated for back-up camera. When the vehicle is in reverse, the screen will automatically switch to reverse camera (back-up camera overrides both DVD and navigation screen).
NAVRGB is an externally wired Plug & Play video interface that is installed in-line of the navigation computer and navigation screen. It works simply by interrupting the video signal from the navigation computer when it is activated, or when 12V are applied on the reverse camera line. When this occurs the navigation system video image will be replaced by the video source that is connected to the NavTool interface.
NAVRGB is a video-only input interface module and does not have any audio inputs. If the vehicle does not have a factory-installed AUX audio jack, then an audio FM modulator/transmitter or an auxiliary audio input interface adapter is needed to connect audio signals from an external AV source to the factory audio system.
NavTool is video-in-motion enabled, so the video image will stay on the screen even with the car in motion, however we do not recommend doing this.
The factory navigation computer cannot play DVD movies, a video source is needed to display video on the factory navigation screen. Examples of video sources: DVD player, Game Console, Digital Media Player, iPod Video (NAVRGB does not support iPod Controls or iPod audio).
Vehicle Specific Installation Information:
THIS INTERFACE SHOULD BE CONNECTED AT THE NAVIGATION COMPUTER AND NOT BEHIND THE SCREEN.
Simply unplug connector from back of the navigation computer, plug in one end of supplied Plug & Play connector into navigation computer. Plug in OEM connector into other end of supplied Plug & Play harness, then connect 12V accessory power, ground, and backup camera wire (if installing aftermarket back-up camera). The installation is really that simple.
Since the unit is plug and play and only requires extra wiring for 12V accessory and ground, it will not void vehicles factory warranty in most cases.
NavTool products are backed with a no-questions-asked 12 month warranty.
DISCLAIMER: WARNING!!! WARNING!!! NAVTOOL VIDEO INTERFACE DOES NOT REPLACE NAVIGATION SYSTEM, IT GIVES YOU ABILITY TO ADD EXTERNAL A/V SOURCES. NAVTOOL IS DESIGNED TO BE USED ONLY WHEN THE VEHICLE IS IMMOBILIZED. THE DRIVER IS RESPONSIBLE FOR MAINTAINING FULL ATTENTION WHILE OPERATING A MOTOR VEHICLE. THE REMOVAL OR BYPASSING OF SAFETY FEATURES IN NAVTOOL PRODUCTS WILL RESULT IN TERMINATION OF WARRANTY. PLEASE BE ADVISED THAT INSTALLATION OF ANY KIND OF PRODUCTS SUCH AS NAVTOOL MAY VOID VEHICLES WARRANTY. USING NAVTOOL IMPROPERLY MAY RESULT IN INJURY, CITATION OR ARREST BY AUTHORITIES. THEREFORE NAVTOOL INC. OWNERS AND EMPLOYEES ARE NOT RESPONSIBLE FOR UNAUTHORIZED USE. PLEASE HAVE A PROFESSIONAL MOBILE ELECTRONICS INSTALLER PERFORM THE INSTALLATION OF NAVTOOL PRODUCTS.
