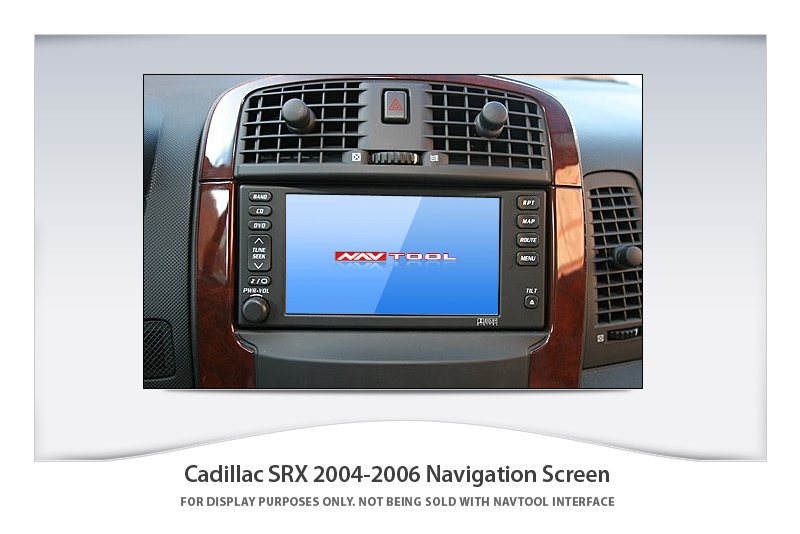

CADILLAC SRX 2004-2006 NAVIGATION VIDEO INTERFACE
|
| Click image below to enlarge
|
 |
| Part Number:
NAVRGB+INTMOD
|
|
| UPC:
internal modification required for this item
|
|
| This interface lets you add DVD, Rear View Camera or any other video source to your factory navigation screen. |
|
 |
|
|
Please choose the PRODUCT OPTIONS
BEFORE
adding it to cart.
SELECT OPTIONS AND FEATURES BELOW:
* denotes required field
2-Year Extended Warranty For NavTool*
Internal modification of the navigation radio required. Price includes labor and parts.
|
|
| |
|
|
|
|
|
|
|
| |
|
| |
Connecting Video Sources to Navigation Screen |
|
|
|
|
 |
|
|
|
| |

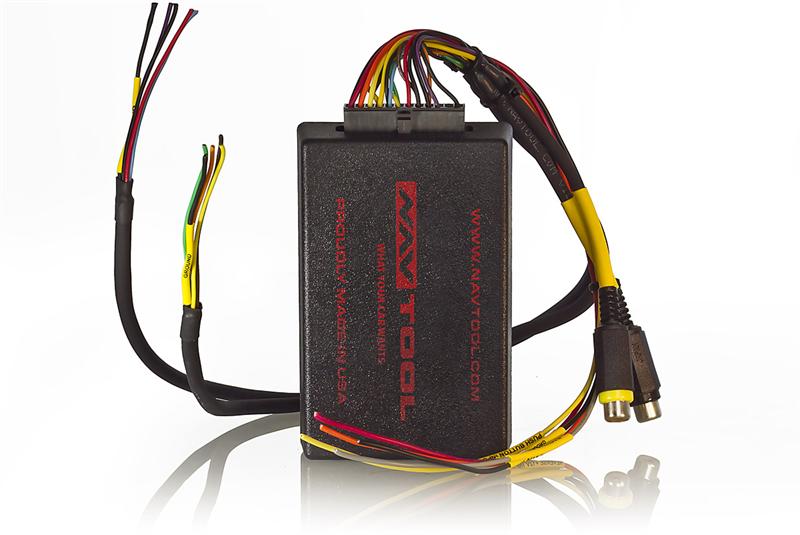

NavRGB 2.0 is a new generation of navigation video interfaces that add video capabilities to vehicles with factory installed navigation system, or with color information screen.
NavRGB 2.0 does not replace or add a factory navigation system; it creates additional video inputs for the factory installed navigation system or color information screen.
|
|
| |
|
|
| |
|
|
|
| |
 |
|
|
| |
NavRGB 2.0 + INTMOD
equires for radio to be sent in for internal modification, for this particular radio there is no interface module that we can send out for self installation. After you receive modified radio form us only connect 12V accessory power, ground, and back-up camera wire (if installing aftermarket back-up camera). NavTool installation harnesses are made using O.E.M. connectors.
NavRGB 2.0 is an externally wired video interface that is installed in-line with the navigation computer and navigation screen. It works simply by interrupting the video signal from the navigation computer when it is activated, or when +12V are applied on the reverse camera wire. When this occur the navigation system video image will be replaced by the video source connected to NavRGB 2.0 video interface.
NavRGB 2.0 is a video-only input interface and does not have any audio inputs. If the vehicle does not have a factory installed AUX audio jack, then an auxiliary audio input adapter or an audio FM modulator is needed to connect audio signals from an external Audio/Video source to the factory audio system.
NavRGB 2.0 is video-in-motion enabled for off-road use, so the video image will stay on the screen even while the vehicle is in motion, however we do not recommend doing this.
Factory navigation DVD-ROM cannot play DVD movies, external video source is needed to display video on the factory navigation screen. Examples of video sources: DVD player, Game Console, Digital Media Player, HDD, iPhone, iPad, iPod Video (NavRGB 2.0 does not support iPod Controls or iPod audio).
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
| |
 |
Being revolutionary device of it’s time,
and recognized industry standard for
years, Nav-RGB is finally retiring after obtaining the worthy successor, packed
with up-to-day technology, and new,
exiting features: |
|
|
|
|
| |
|
|
|
| |
|
|
|
|
 |
|
|
| |
Vehicle Specific Installation Information: |
|
| |
|
|
| |
NavRGB 2.0+INTMOD
SHOULD BE CONNECTED AT THE NAVIGATION COMPUTER AND NOT BEHIND THE SCREEN. |
|
| |
|
|
| |
ATTENTION:
This kit requires for radio to be sent in for internal modification, for this particular radio there is no interface module that we can send out for self installation. After you receive modified radio form us only connect 12V accessory power, ground, and back-up camera wire (if installing aftermarket back-up camera). The installation is really that simple.
INTMOD only requires extra wiring for +12V accessory power input and chassis ground connection, these connections will not void vehicles factory warranty in most cases.
The Installation of the NavTool products generally kept simple, however we always recommend using help of the professional installer to perform the NavTool interface installation in order to ensure proper operation of NavTool products. |
|
| |
|
|
|
|
|
|
|
| |
 |
|
|
| |
Inputs and Outputs |
|
| |
|
|
| |

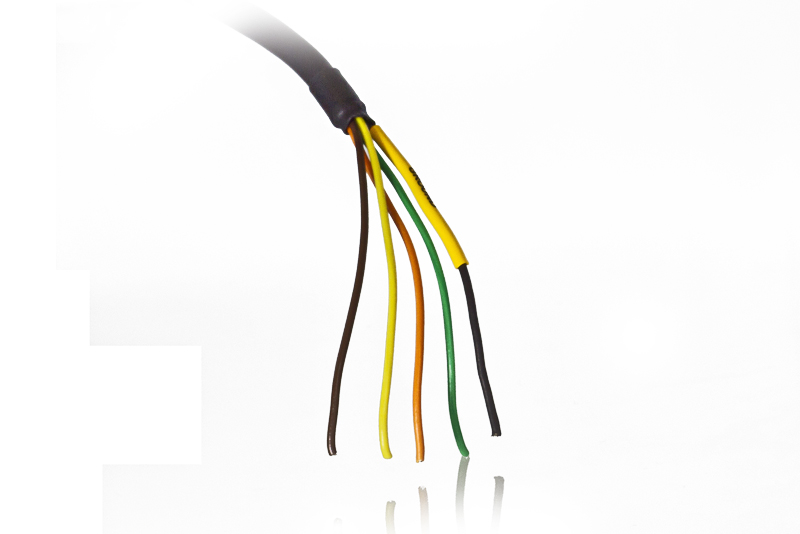

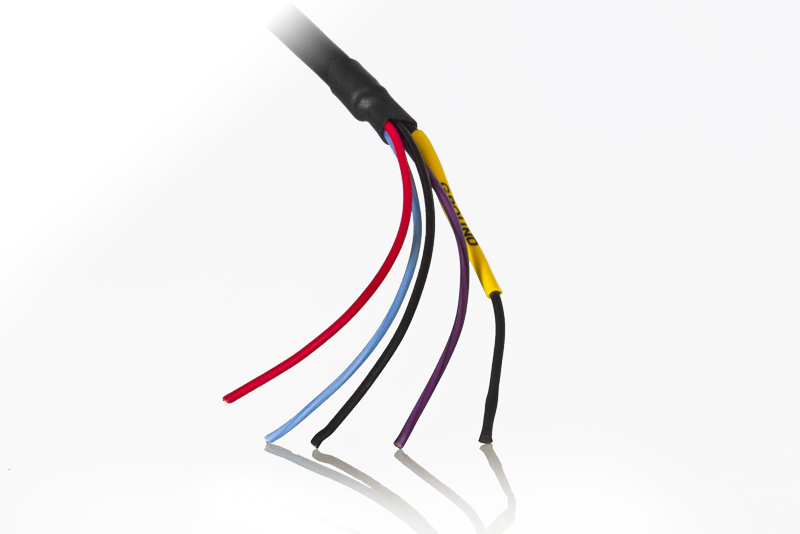

24-pin main connector: |
|
|
|
|
| |

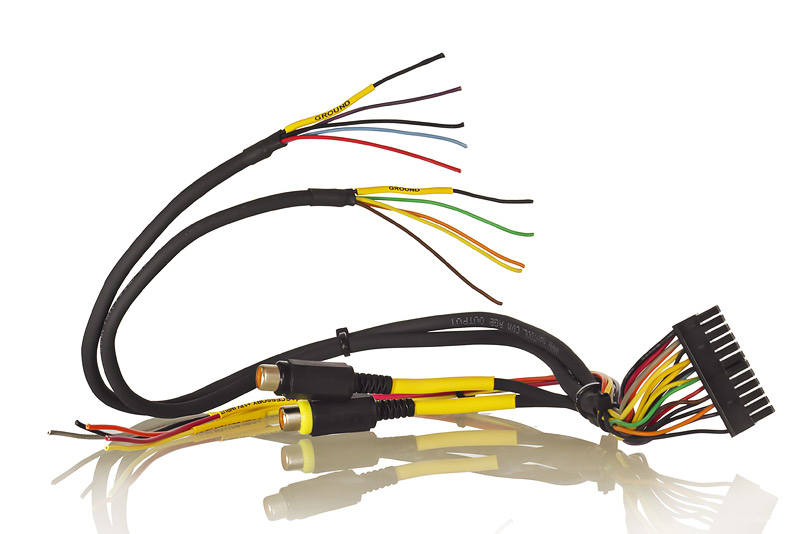

Plug and play T-Harness |
Parking Brake Input
|
| +12V Accessory input |
Push Button Switch Input |
| Chassis Ground Connection |
Composite Video 1 Input |
| +12V Reverse Light Input |
Composite Video 2 Input |
|
|
| |
|
|
| |
Video input one is dedicated for any external composite video source. |
|
| |
Video input two is dedicated for back-up camera, input is automatically activated when vehicle is placed in reverse, parking grid lines can be
turned
on or off. |
|
| |
Video input two can also be used as an input for any external composite video source. |
|
| |

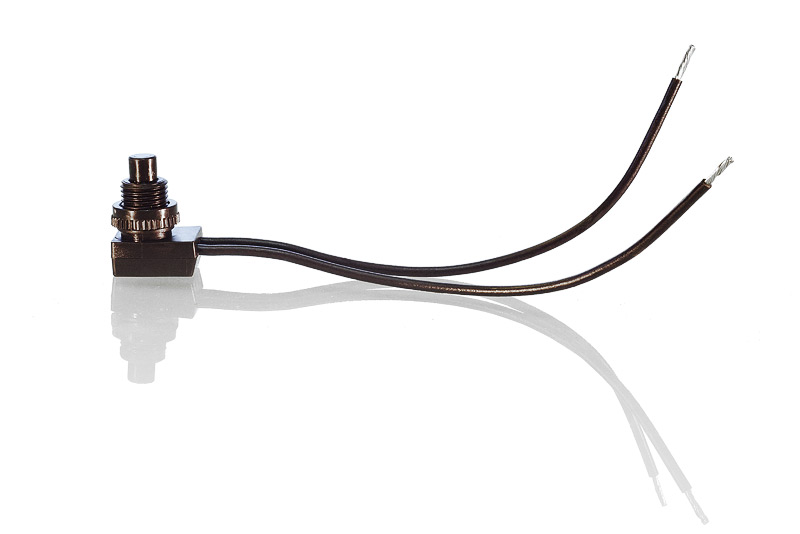

Video switching is done by pushing supplied push button switch, single push will cycle between Video 1 and Video 2, press and hold push button for more than 2 seconds to return back to the original navigation/information screen. |
|
| |
|
|
| |
 |
|
|
|
Why installing NavTool interface has no effect on vehicle warranty?
Vehicles owners are often confused about effect on their warranty if aftermarket parts installed on their brand new vehicles. This confusion often is the result of intentionally misleading information intended to convince you that only the manufacturer or authorized dealer should service your vehicle.
This practice is also known as "Tie-In Sales" Provisions. Legally tie-in sales provisions are not allowed. These provisions require an owner of the warranted product to buy an item or service from a particular company to use with the warranted product in order to be eligible to receive a remedy under the warranty. For example, in order to keep your new vehicles warranty in effect, you must use genuine parts. Failure to have scheduled maintenance performed, at your expense, by the dealership voids this warranty.
